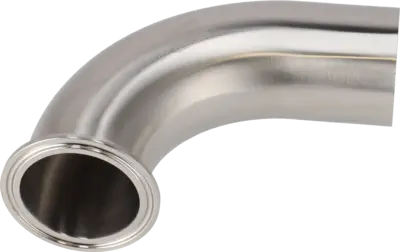

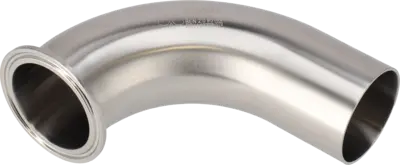

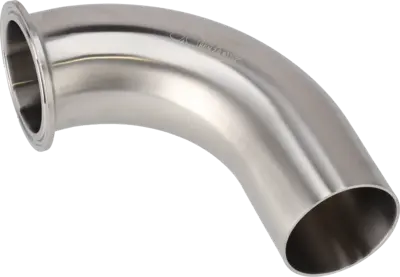

B2CMW-6-316L-PL

B2CMW-6-316L-PL - BPE TCXW 90 20RA/POL OD SF1
Manufacturer:Alfa Laval
Product code: 5016
Item number: 9635000184
In stock:
The green marker indicates that the product is typically in stock.. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 7307290090
Delivery time:On request
  • Range: Bends
  • Product model: Tri-Clover BPE Bends 90
  • Size: 6"
  • Material: 316L
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection type: Tri-Clamp and Weld
  • Standard: ASME BPE
  • Design: B2CMW
  • Item Weight: 5.08
  • Country of origin:
Price:
Login to view price

Tax excluded

A: 292.10
B: 266.70
OD/ID x t: 152.40/146.86 x 2.77
OD1/ID1 x t1: 152.40/146.86 x 2.77
