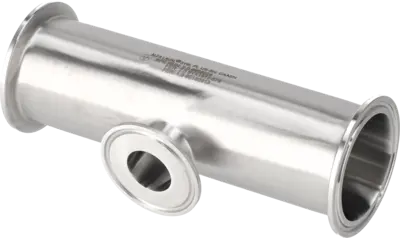

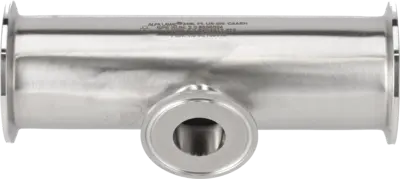

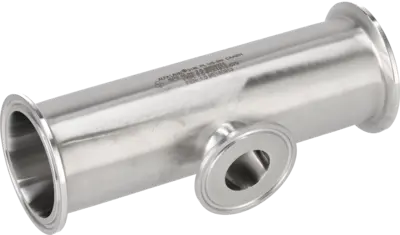

B7RMPS-3 X 3/4-316L-PL

B7RMPS-3 X 3/4-316L-PL - BPE TC S/O RED T 20RA SF1
Manufacturer:Alfa Laval
Product code: 5037
Item number: 9634003959
In stock:
The green marker indicates that the product is typically in stock.. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 7307290090
Delivery time:On request
  • Range: Tees
  • Product model: Tri-Clover BPE Reducing Tees Short
  • Size: 3"
  • Second size: 0.75"
  • Material: 316L
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection type: TCxRTC
  • Standard: ASME BPE
  • Design: B7RMPS
  • Item Weight: 0.78
  • Country of origin:
Price:
Login to view price

Tax excluded

A: 98.40
B: 54.00
OD/ID x t: 76.20/72.90 x 1.65
OD1/ID1 x t1: 76.20/72.90 x 1.65
OD2/ID2 x t2: 19.05/15.75 x 1.65
