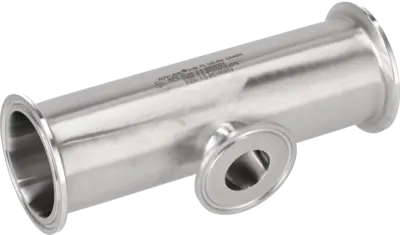

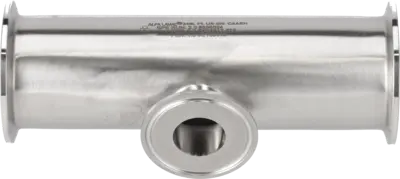

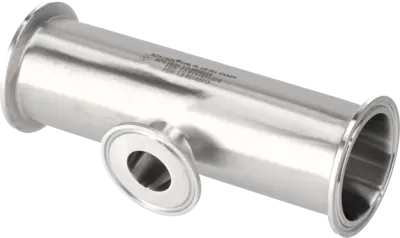

B7RMPS-4 X 3-316L-PL

B7RMPS-4 X 3-316L-PL - BPE TC S/O RED T 20RA SF1
Manufacturer:Alfa Laval
Product code: 5037
Item number: 9634004023
In stock:
The green marker indicates that the product is typically in stock.. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 7307290090
Delivery time:On request
  • Range: Tees
  • Product model: Tri-Clover BPE Reducing Tees Short
  • Size: 4"
  • Second size: 3"
  • Material: 316L
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection type: TCxRTC
  • Standard: ASME BPE
  • Design: B7RMPS
  • Item Weight: 1.48
  • Country of origin:
Price:
Login to view price

Tax excluded

A: 120.70
B: 66.70
OD/ID x t: 101.60/97.38 x 2.11
OD1/ID1 x t1: 101.60/97.38 x 2.11
OD2/ID2 x t2: 76.20/72.90 x 1.65
