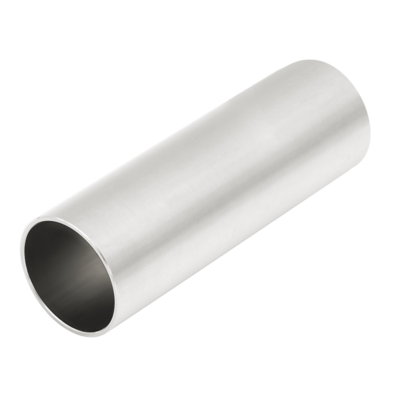

TUBE ASME BPE 76,2x1,65 316L

TUBE ASME BPE 76,2x1,65 316L - PL ASTM A-270 Attention: Can only be ordered in 6 meters length.
Manufacturer:Alfa Laval
Product code: 5116
Item number: 9613407107
In stock:
The green marker indicates that the product is typically in stock.. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 73064080
Delivery time:On request
  • Range: Tubes
  • Product model: Tri-Clover BPE Tubes
  • Size: 76.2 mm
  • Material: 316L
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection type: Weld ends
  • Standard: ASME BPE
  • Design: A-270
  • Item Weight: 3.08
  • Country of origin:
Price:
Login to view price

Tax excluded

OD/ID x t: 76.20/72.90 x 1.65
OD1/ID1 x t1: 76.20/72.90 x 1.65
Length (mm): 6000
